Description

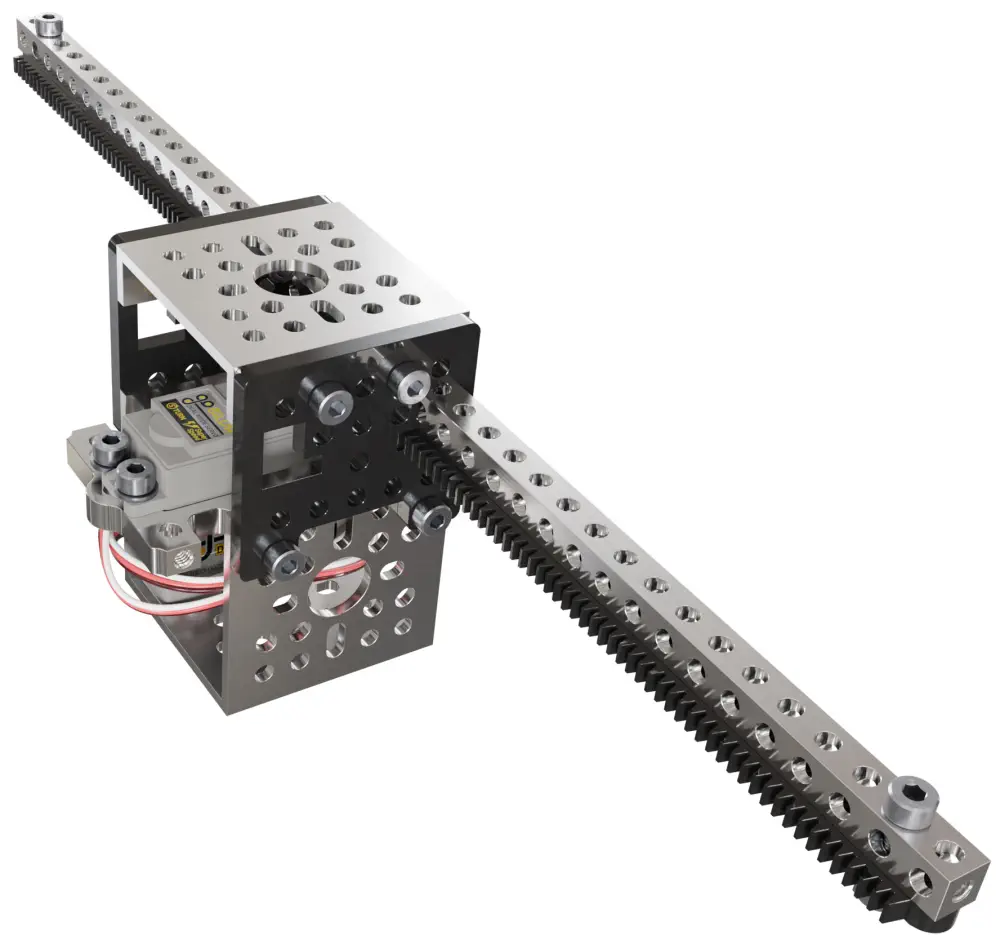

- ServoCity Servo-Driven Gear Rack Kit (12lb Thrust, 11.4 in/sec, Single Gear Rack)
- Facilitates precise linear motion
- Delivers 12lb thrust at 11.4 in/sec
- Incorporates versatile U-Channel structure
- Supports goBILDA® 16mm pattern
- Powered by Super Speed Servo
The ServoCity Servo-Driven Gear Rack Kit (12lb Thrust, 11.4 in/sec, Single Gear Rack) is designed to facilitate linear motion through the use of a servo. This kit is notable for its compact design while delivering a substantial thrust of 12 pounds and a speed of 11.4 inches per second. It is powered by a 5-Turn Dual Mode Super Speed Servo, which is integral to its performance. The single gear rack is securely attached to a Square Beam, offering extensive attachment options via threaded holes compatible with the goBILDA® 16mm linear pattern. The accompanying U-Channel structure enhances the kit's versatility by providing numerous mounting possibilities. This flexibility allows for the substitution of the included channels with other channels from the same series, accommodating various project requirements. The kit is ideal for applications requiring precise and efficient back-and-forth motion, making it a valuable component for innovative engineering projects.
- 1x 1106 Series Square Beam (41 Hole, 328mm Length)
- 1x 1120 Series U-Channel (1 Hole, 48mm Length)
- 1x 1121 Series Low-Side U-Channel (1 Hole, 48mm Length)
- 2x 1133 Series Plastic Flat Grid Bracket
- 1x 1802 Series Servo Frame (43mm Width, for Standard Size Servos)
- 1x 2000 Series 5-Turn, Dual Mode Servo (25-4, Super Speed)
- 1x 2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 24 Tooth)
- 1x Acetal MOD 0.8 Gear Rack (118 Tooth, 41 Hole)
- 25x 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length)
- 25x 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length)
- 25x M4 x 0.7mm Nylock Nut
- Servo included: 2000-0025-0504
- PWM range for full travel: 700 - 2300 μsec
- Travel per μsec: 0.15 mm/μsec
- Pulse amplitude: 3-5V
- Deadband width: 4 μsec
- Motor type: Brushed DC
- Voltage range: 4.8V to 7.4V
- No-load speed at 4.8V: 180 mm/sec (7.09 in/sec)
- No-load speed at 6V: 230 mm/sec (9.06 in/sec)
- No-load speed at 7.4V: 290 mm/sec (11.42 in/sec)
- Speed at peak output power at 4.8V: 90 mm/sec (3.54 in/sec)
- Speed at peak output power at 6V: 115 mm/sec (4.53 in/sec)
- Speed at peak output power at 7.4V: 145 mm/sec (5.71 in/sec)
- Stall thrust at 4.8V: 4.1 kg (9.0 lb)
- Stall thrust at 6V: 4.9 kg (10.8 lb)
- Stall thrust at 7.4V: 5.6 kg (12.3 lb)
- Thrust at peak output power at 4.8V: 2.1 kg (4.6 lb)
- Thrust at peak output power at 6V: 2.4 kg (5.3 lb)
- Thrust at peak output power at 7.4V: 2.8 kg (6.2 lb)
- No-load current at 4.8V: 190 mA
- No-load current at 6V: 200 mA
- No-load current at 7.4V: 230 mA
- Stall current at 4.8V: 2000 mA
- Stall current at 6V: 2500 mA
- Stall current at 7.4V: 3000 mA
- Current at peak output power at 4.8V: 1000 mA
- Current at peak output power at 6V: 1250 mA
- Current at peak output power at 7.4V: 1500 mA
