SparkFun GNSS Flex pHAT - ZED-X20P & IM19 IMU
Integrates ZED-X20P RTK GNSS and IM19 IMU
Offers centimeter-level accuracy
Supports RTK, PPP-RTK, and L-band services
Ensures multi-layered security defenses
Provides accurate roll and pitch measurements

The SparkFun GNSS Flex pHAT - ZED-X20P & IM19 IMU integrates a ZED-X20P all-band RTK receiver with a high-precision IMU, offering centimeter-level accuracy, tilt compensation, and dead reckoning capabilities. This device serves as a crucial interface between a Raspberry Pi and the modular SparkPNT ecosystem, ensuring precise navigation for demanding applications. It supports advanced positioning technologies such as Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning, and is compatible with L-band correction services.

The high update rate of this pHAT ensures smooth operation in high-speed robotics and vehicle control systems. Security features include multi-layered defenses such as Root of Trust, jamming and spoofing detection, and Galileo OSNMA cryptographic authentication. The device offers survey-grade accuracy with roll and pitch measurements accurate to within 0.05 degrees, and employs sensor fusion to maintain continuous navigation even during brief GNSS signal interruptions. It is equipped with both SMA and U.FL connectors for flexible antenna connections and includes a USB-C port for an alternative data interface. An external antenna and a Raspberry Pi or similar single-board computer are required for operation.

Note: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

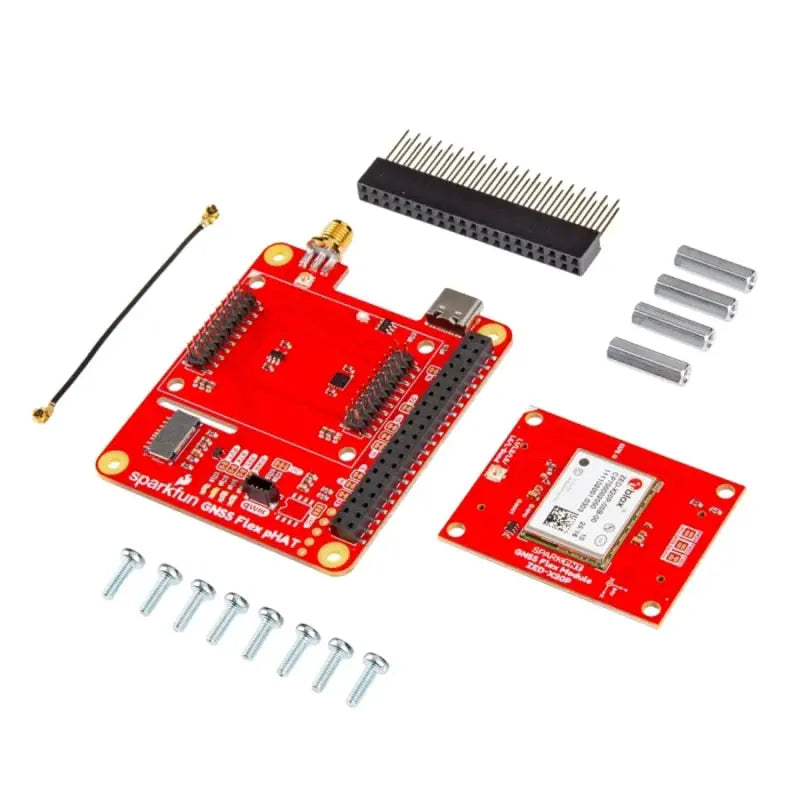

1x SparkFun GNSS Flex pHAT
1x SparkPNT GNSS Flex Module ZED-X20P & IM19 IMU
1x U.FL to U.FL Mini Coax Cable - 50mm
1x Tall GPIO Female Headers - 2x20 Pin
4x Aluminum Hex Standoff (Thread: M2.5-0.45; Length: 16mm)
8x Phillips Machine Screw (Thread: M2.5-0.45x8mm)

44 x 34 mm (1.73 x 1.34")

PDF Files

ZIP File

SparkFun GNSS Flex pHAT - ZED-X20P & IM19 IMU - Step File

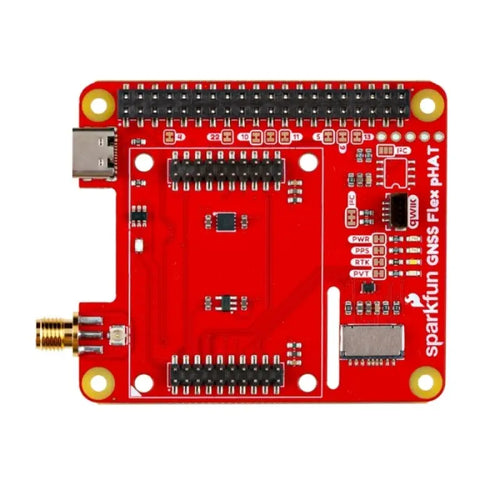

GNSS Flex pHAT:

40-pin socket for Raspberry Pi header
40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB data (Read USB note)
  - UART (x4)
  - SD card
  - I2C bus
  - PPS signal (x2)
  - LED indicators (x2)
  - Event indicators (x2)
USB-C connector (Read USB note)
- Interfaces directly w/ GNSS Flex Module
Antenna bridge
- U.FL connector
- SMA connector
µSD card socket
Qwiic connector
Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I2C pull-up resistors (x4)

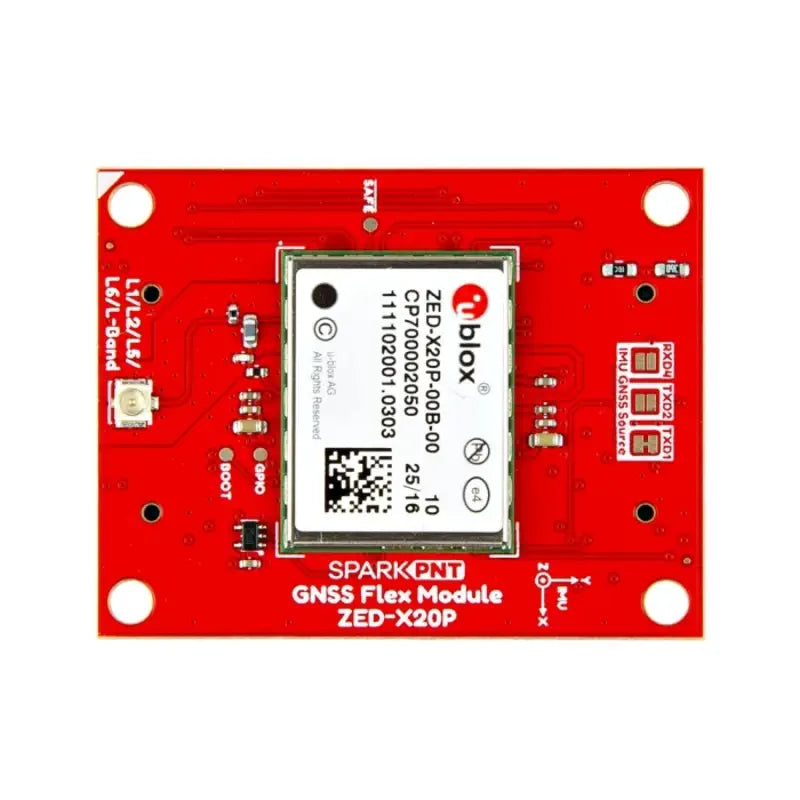

GNSS Flex Module - ZED-X20P and IM19:

u-blox ZED-X20P Allband, GNSS module
- GNSS Constellations:
  - GPS (USA)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WAAS (USA)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)

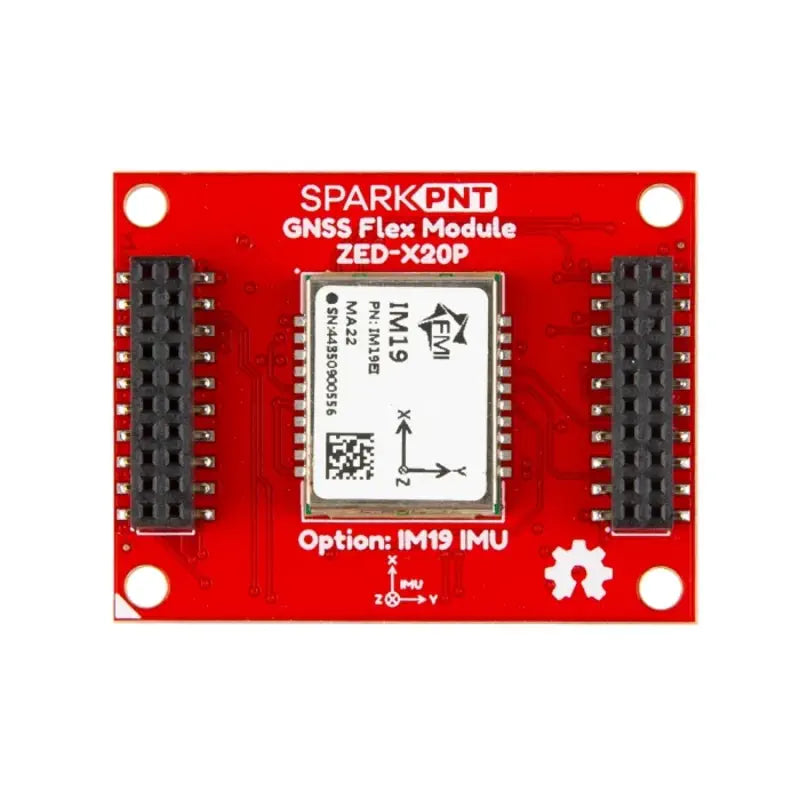

IM19 Inertial Measurement Unit
Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex pHAT / Breakout
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB (x1) (Read USB note)
  - UART (x4)
  - I2C bus
  - PPS signal (x1)
  - PVT signal (x1)
  - RTK signal (x1)
  - Event signal (x1)
U.FL Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna
Dimensions: 44.0mm x 34.0mm (Approx. 1.73" x 1.34")
Four mounting holes:
- 4-40 screw compatible
- Hole centers: 39.0mm x 29.0mm
Header spacing: 36.0mm

Flex Module Interfaces:

USB: ZED-X20P only (D+ and D-) (Read USB note)
I2C: ZED-X20P only (SDA and SCL)
Flex COM1: ZED-X20P UART1 (TX and RX only)
Flex COM2: ZED-X20P UART2 (TX and RX only)
Flex COM3: IM19 UART1 (TX and RX only)
Flex COM4: IM19 UART2
PPS1: ZED-X20P TIMEPULSE
PPS2: N/C
EVENTA: ZED-X20P EXTINT
EVENTB: N/C
RTK LED: ZED-X20P RTK_STAT (Inverted)
PVT LED: ZED-X20P GEO_STAT (Geofence)

ZED-X20P General Features:

Supply voltage: 2.7V to 3.6V
GNSS Support:
- GPS: L1C/A, L2C, L5
- Galileo: E1B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B*, L2C, L5, L6
- NavIC: L1*, L5
- SBAS: L1C/A
Interfaces:
- USB (Read USB note)
- UART x2
- SPI
- I2C
Features
- Programmable flash memory
- Carrier phase output
- Jamming detection
- Galileo OSNMA
- Secure boot
Services:
- AssistNow
- PointPerfect
Operating temperature: -40°C to 85°C
Dimensions: 17.0mm x 22.0mm x 2.4mm

IM19 General Features:

Operating Range:
- Accelerometer: ±8g
- Gyroscope: ±1000°/s -Accuracy:
- Accelerometer Bias: ±5mg
- Gyroscope Bias Accuracy: ±0.2°/s
  - Roll/Pitch: ±0.025° (1σ)
  - Heading: ±0.25° (1σ)
- RTK: + 0.3mm/tilt°, with 200cm straight pole (1σ)
- Auto Steering Yaw: 0.25° (1σ)
Initialization: ~1s
Footprint: 14.8mm x 18.4mm
