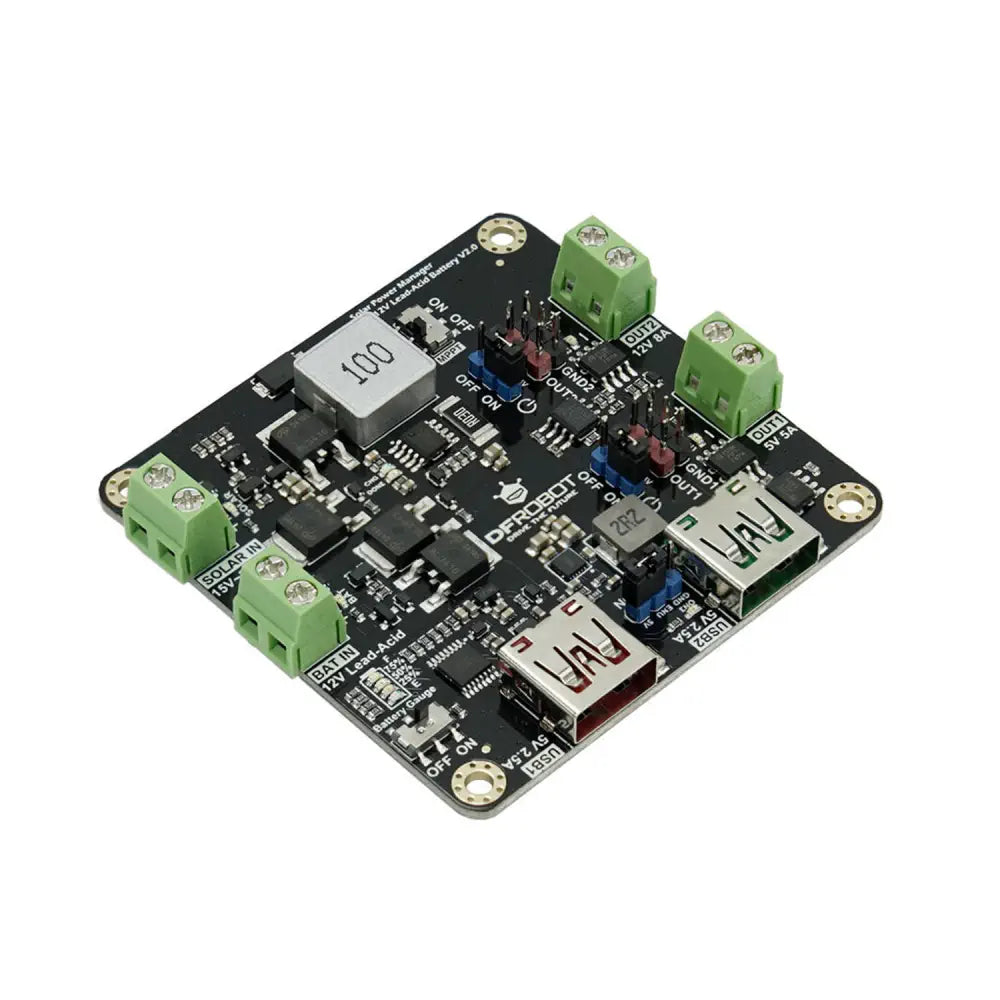

DFRobot Solar Power Manager for 12V Lead-Acid Battery
Optimizes solar output with MPPT technology
Supports 12V lead-acid battery charging
Features dual high-power outputs (5V 5A, 12V 8A)
Integrates easily with its compact design
Ensures safety with comprehensive protections
The DFRobot Solar Power Manager for 12V Lead-Acid Battery is a medium-power, high-efficiency solar power management module designed for IoT and renewable energy projects. It facilitates the charging of a 12V lead-acid battery with a maximum current of 4A using a standard 18V solar panel. This module is suitable for applications up to 100W, including 12V lighting equipment, security monitoring, small robots, pumps, and environmental monitoring stations.
It features Maximum Power Point Tracking (MPPT) to optimize solar panel output under varying sunlight conditions, enhancing charging performance by 10%-30% compared to common PWM solar controllers. The compact and lightweight design allows for easy integration into various projects. The module offers dual high-power outputs of 5V 5A and 12V 8A, along with dual USB outputs of 5V 2.5A each. Except for one USB output, all outputs can be controlled via I/O pins of most controllers, aiding in dynamic power management and reduced power consumption. Comprehensive protection functions ensure the safety and stability of the solar systems.
1x Solar Power Manager for 12V Lead-Acid Battery
3x Black Jumper
4x Nylon pillar M3*16
4x Stainless steel screw M3*10
1x Aluminum cooling fin (Black) 14*7mm
1x Thermal conductive silicone pad (Blue) 14*0.5mm
1x Aluminum cooling fin (Black) 50*12.7mm
1x Thermal conductive silicone pad (Blue) 50*1.5mm
Charge Current: Maximum 4A with four stages (Trickle, Constant Current, Constant Voltage, Float)
Float Charge Voltage: 13.55V
Over-discharge Protection Voltage: 10.8V
Solar Charge Average Efficiency: 94% at 18V Solar Input

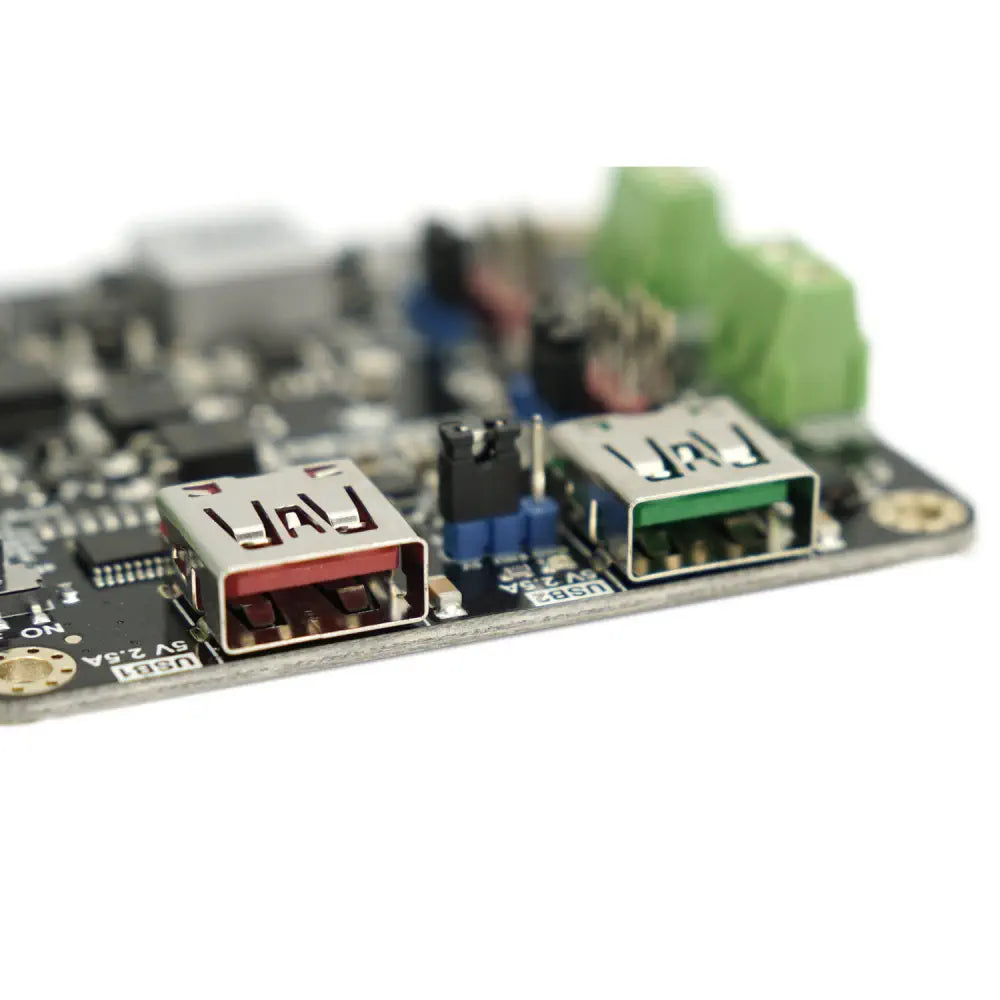

Outputs: OUT1 at 5V 5A, OUT2 at 12V 8A, USB1 at 5V 2.5A, USB2 at 5V 2.5A
USB1/USB2 support three USB charge protocols: Apple 2.4A, Samsung 2.0A, BC1.2
OUT1/USB1/USB2 Efficiency: 93% at 50% load
OUT2 Efficiency: 98% at 50% load
Quiescent Current: Less than 4 mA
Protection Functions: Backflow and Reverse Connection for Solar Input; Over-discharge, Over-charge, and Reverse Connection for Battery Input; Short Circuit, Over Current, and Over Heat for Outputs and USB ports
