Description
- Digilent Analog Discovery Studio Max: Multi-Instrument Lab for Engineering Experimentation
- Integrates 14 essential instruments for diverse applications
- Facilitates circuit design and signal analysis learning
- Supports multi-platform use with WaveForms software
- Includes four oscilloscope channels with 50 MHz bandwidth
- Empowers custom solutions with SDK for multiple languages

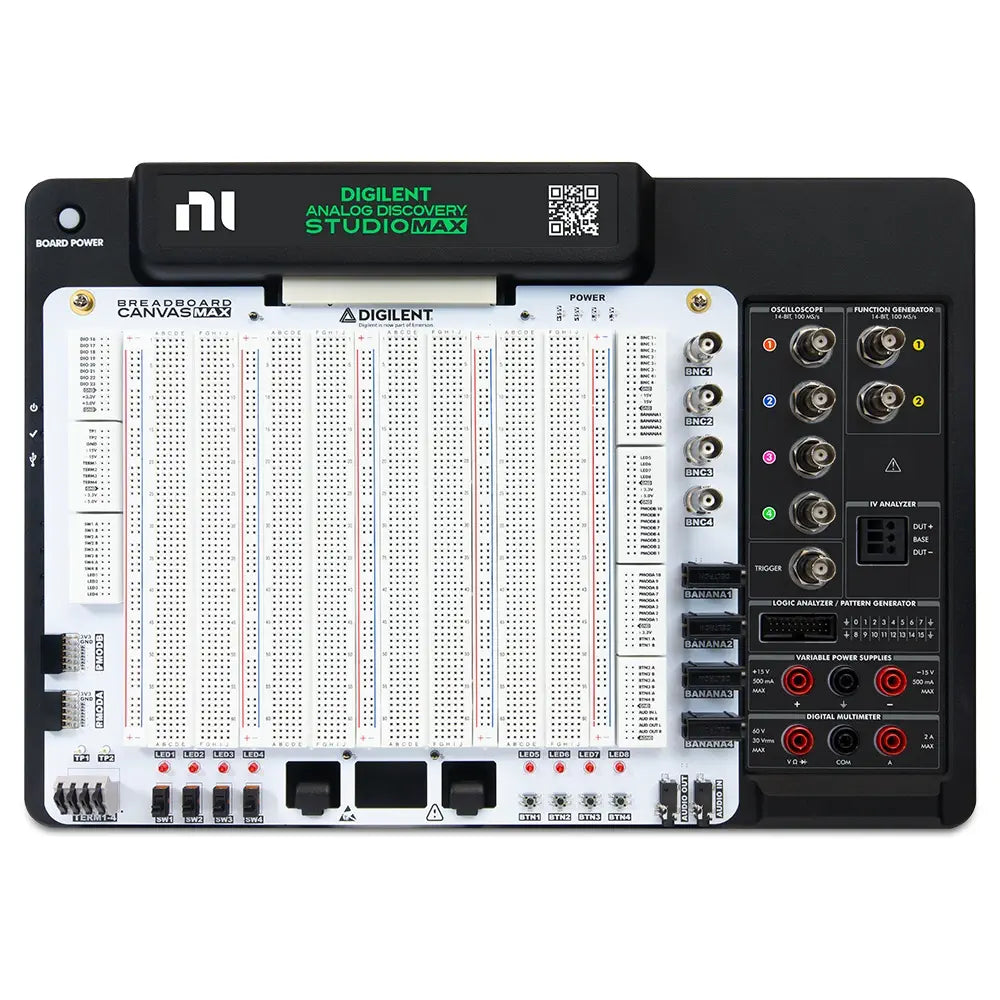

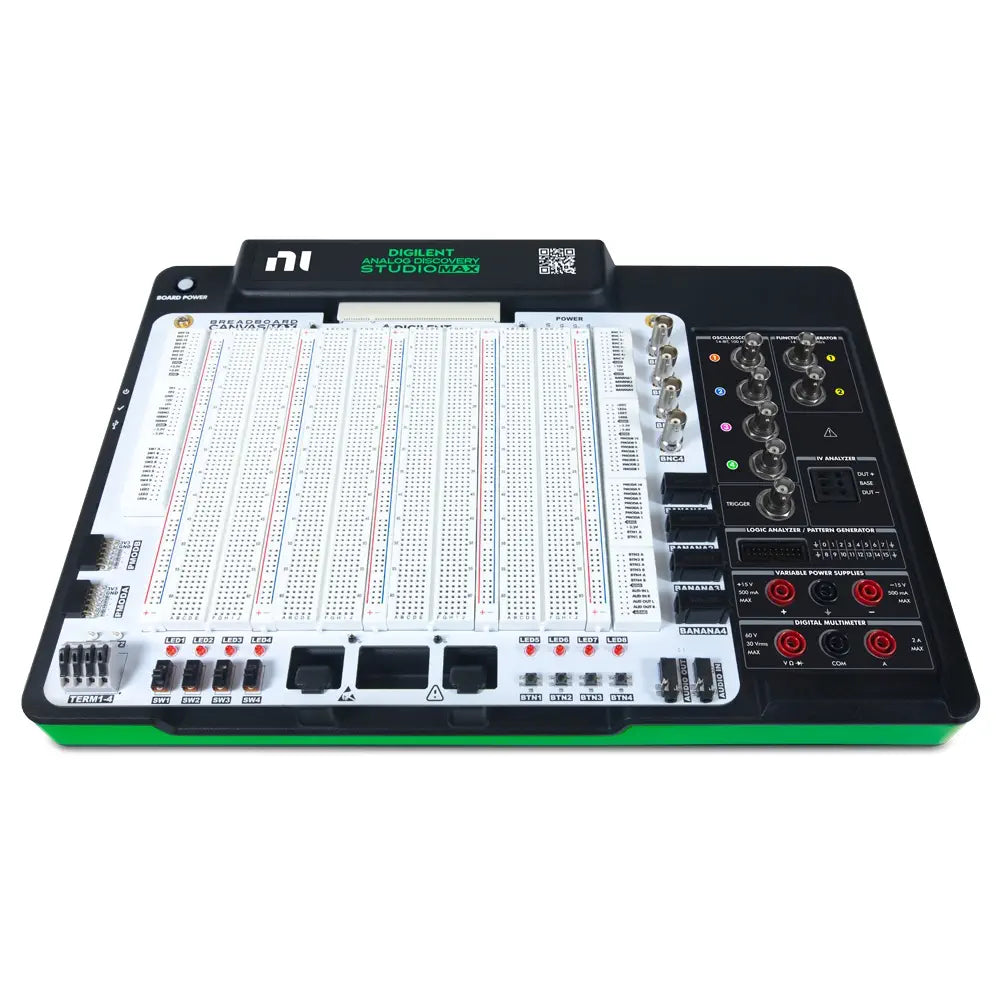

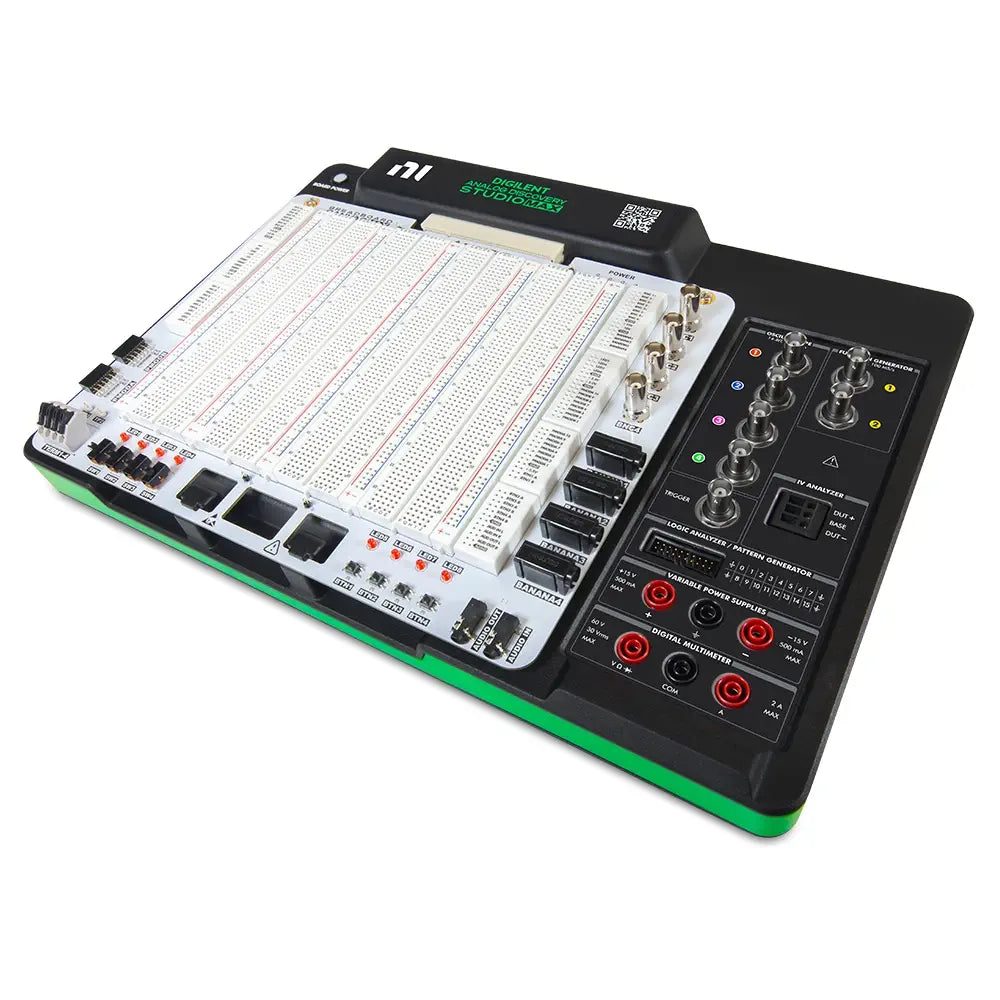

The Digilent Analog Discovery Studio Max: Multi-Instrument Lab for Engineering Experimentation is a sophisticated and comprehensive electronics laboratory solution designed specifically for academic settings. This device integrates fourteen essential test instruments into a single, compact unit, making it an ideal tool for courses focused on circuit design, signal analysis, and embedded systems. Among the integrated instruments are an oscilloscope, waveform generator, logic analyzer, spectrum analyzer, digital multimeter, power supplies, and protocol analyzer.
This integration facilitates seamless circuit prototyping with its built-in power supplies and breadboardable interface, supporting a wide range of educational environments, from traditional classrooms to remote learning setups.
Additionally, the device is equipped with digital I/O capabilities, featuring 16 channels for versatile digital signal interfacing, which is further enhanced by the Canvas Max connector. This comprehensive suite of tools makes the Analog Discovery Studio Max an invaluable resource for engineering experimentation, providing students and educators with the necessary instruments to explore and understand complex electronic concepts effectively.
Note: Ensure proper handling and usage of the device to prevent electrical hazards.

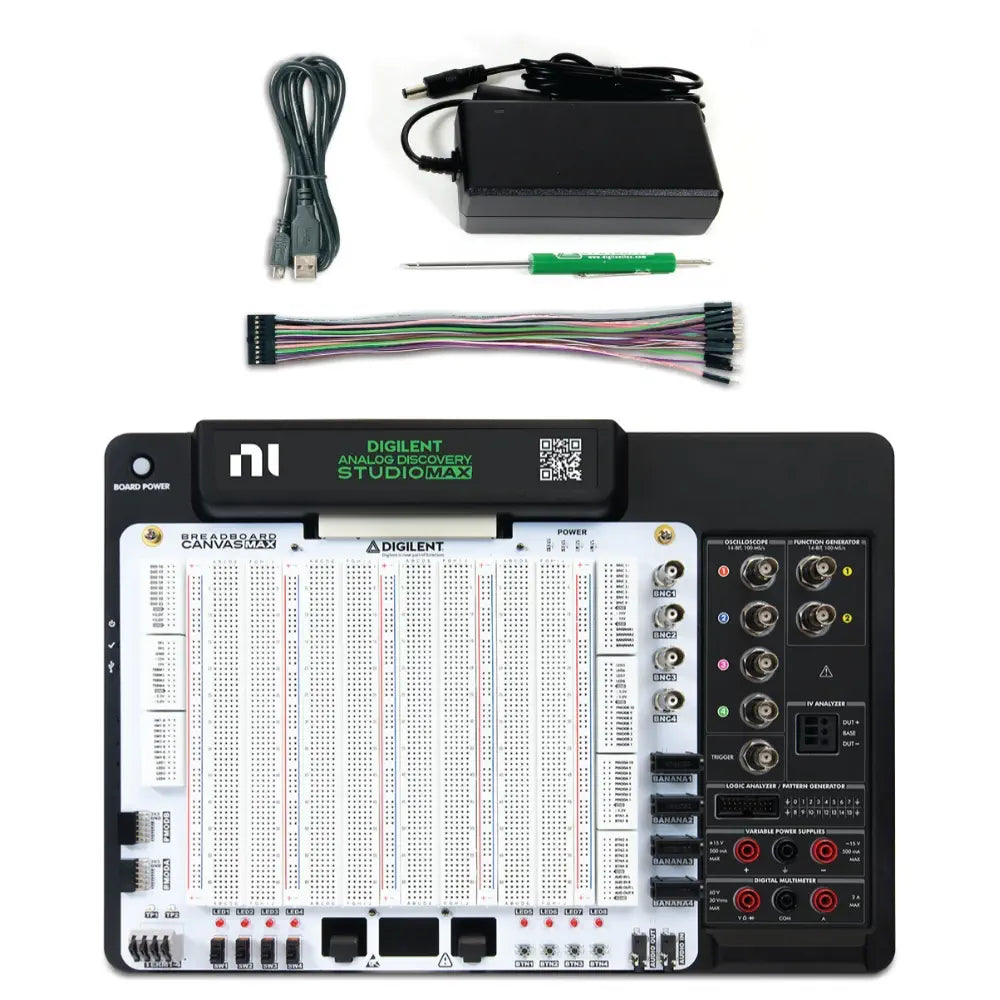

- 1x ADS Max
- 1x Analog Discovery Studio Canvas Max
- 1x Power supply, 115-230 VAC, 60 Hz, 19 V, 90 W
- 1x Screws, M4 thread, 6mm length
- 1x USB cable, type A- type C, 2m
- 1x Screwdriver
- 1x Flywire cable 2x10, keyed
- Four oscilloscope channels with 50 MHz bandwidth
- Six power supplies, variable and static
- Two arbitrary waveform generators
- Up to 24 digital I/O channels
- Built-in digital multimeter
- USB connection to host computer
- Supports swappable canvases for convenient prototyping and solutions
- Advanced triggering and cross-triggering between instruments and devices
- WaveForms software support for Windows, Mac, and Linux
- LabVIEW WaveForms Toolkit
- 14-bit resolution for analog inputs and outputs
- 100 MS/s per channel sampling rate
- 15 MHz bandwidth for analog outputs
- 16 dynamically configurable digital input/output channels
- Two programmable power supplies: 0.5 V to 15 V and -0.5 V to -15 V; up to 500 mA per channel
- Four fixed power supplies: 15 V (500 mA), -15 V (500 mA), 5 V (2 A), and 3 V (310 mA)
- Integrated USB hub
- Software Development Kit (SDK) for custom applications and scripting through C++, Python, C#, Visual Basic
