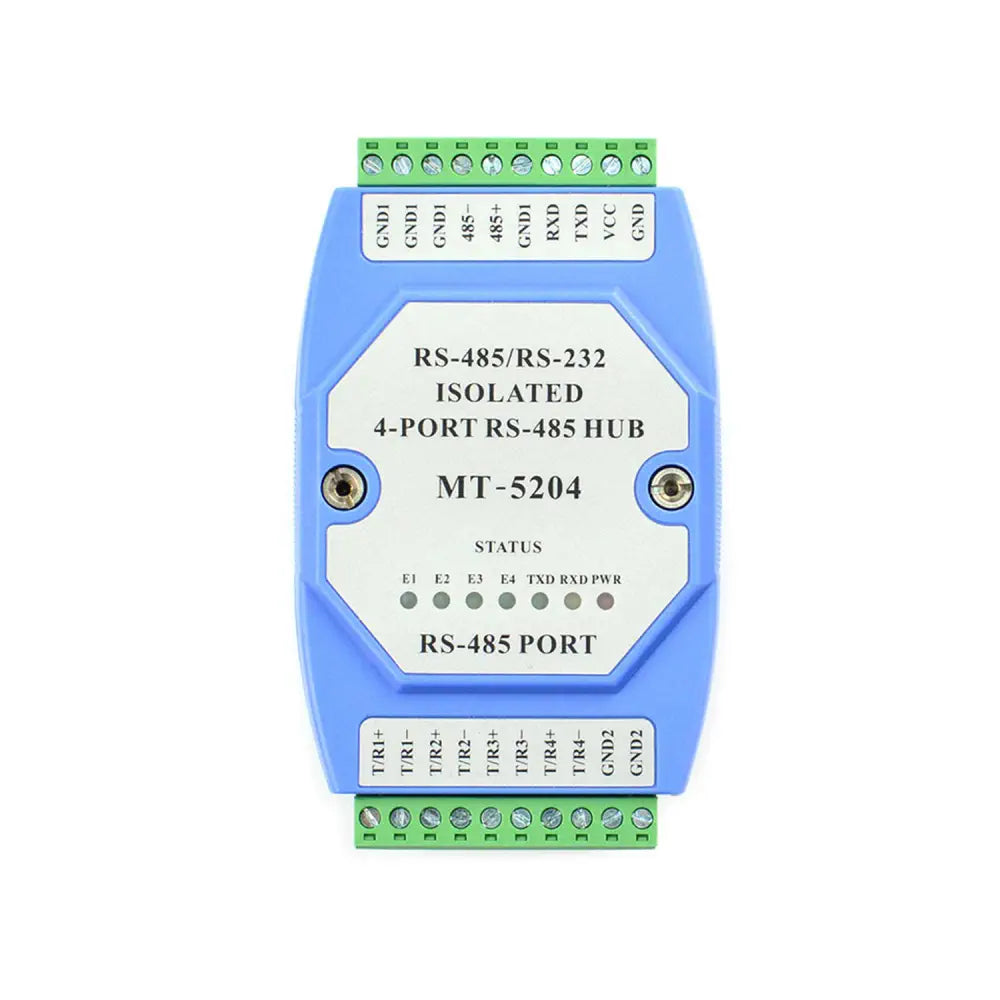

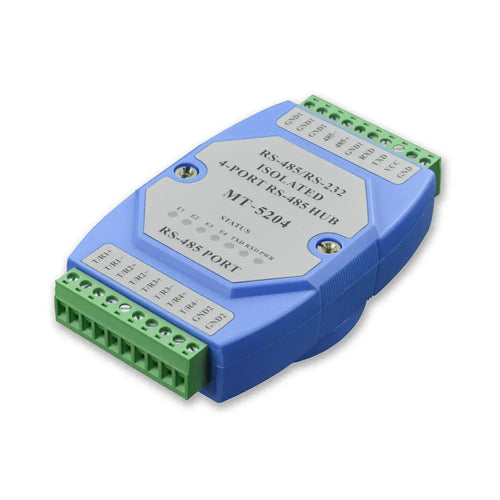

Industrial RS485 Opto-Isolated Hub

DFRobotSKU: RB-Dfr-1599
Manufacturer #: FIT0821
Price  :
¥12,509

Tax included Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

Apple Pay Discover JCB Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Industrial RS485 Opto-Isolated Hub
  • Engineered for complex electromagnetic environments
  • Supports speeds up to 115.2Kbps
  • Safeguards with 2500V isolation and surge protection
  • Operates stably over distances exceeding 1200m
  • Detects data flow direction for reliable conversion

The Industrial RS485 Opto-Isolated Hub is engineered to fulfill the demands of large-scale RS485 systems operating in complex electromagnetic environments. It supports data transmission speeds up to 115.2Kbps and employs photoelectric isolation technology to safeguard against lightning surges, ensuring the safety and reliability of data communication. The hub features a built-in opto-isolator and a 600W surge protection circuit, providing an isolation voltage of 2500V to effectively suppress interference such as surges and electrostatic discharges.

This hub is capable of stable operation over transmission distances exceeding 1200 meters in RS485 mode. It includes a discrimination circuit that automatically detects data flow direction and switches the enable control circuit, addressing the issue of RS485 transmission and reception conversion delay. This makes it highly suitable for power acquisition systems and other applications requiring reliable data interface conversion.

The hub facilitates a star RS485 bus connection, with each port offering short-circuit and open-circuit protection. Users can enhance the RS485 bus structure, segment networks, and improve communication reliability. In the event of lightning strikes or equipment malfunctions, the hub isolates the faulty network segment, allowing other segments to function normally, thereby enhancing the reliability of the RS485 network and reducing maintenance time.

  • 1x Industrial RS485 Opto-Isolated Hub
  • 120 x 77 x 40 mm (4.72 x 3.03 x 1.57")
  • Interface compatible with EIA/TIA's RS-232C and RS-485 standards

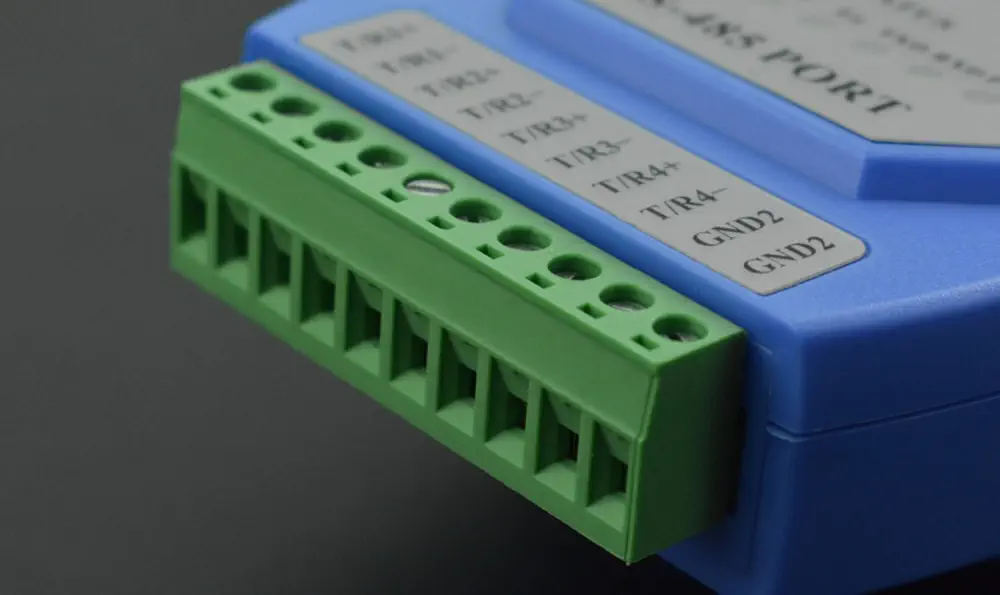

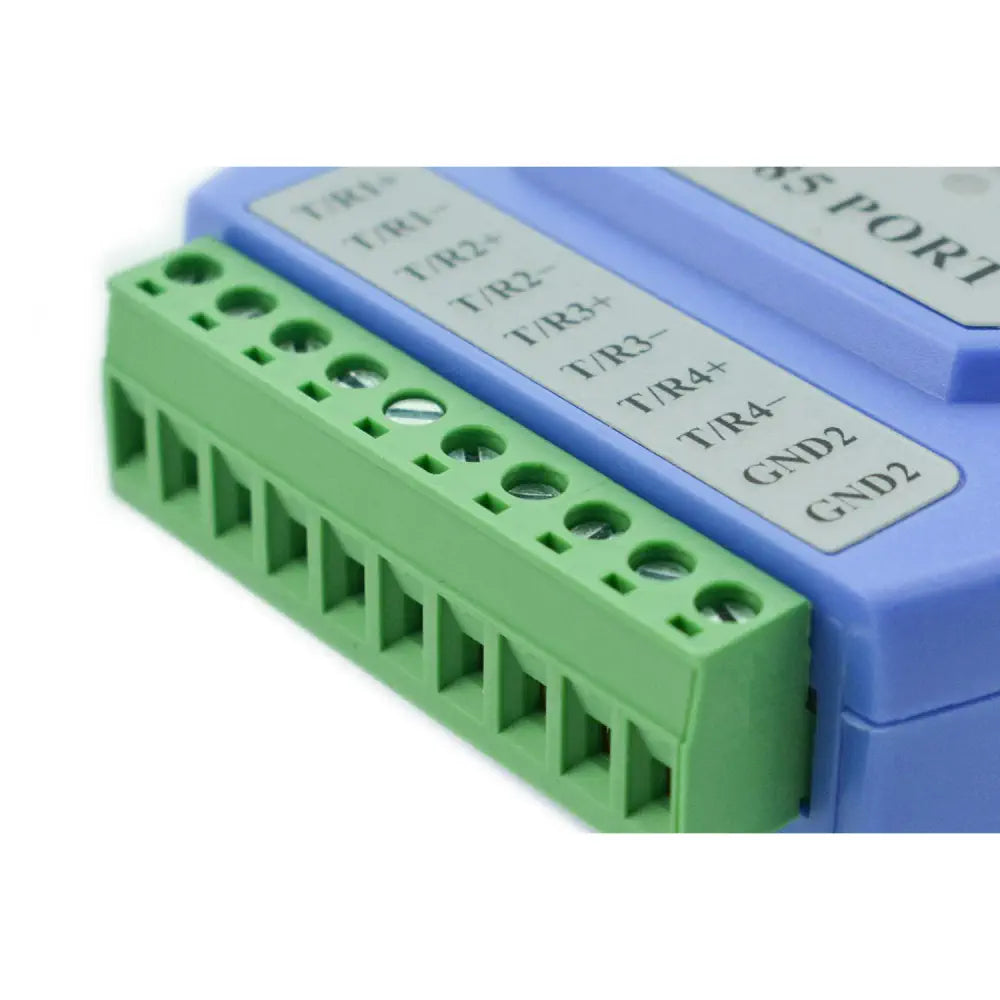

  • Electrical interface: 10-position pluggable terminal blocks on both sides
  • Transmission medium: twisted pair or shielded wire
  • Working mode: asynchronous half-duplex
  • Power supply: 9V to 30V DC/150mA
  • Signal indication: 7 signal indicator lights for power, sending, receiving, and malfunction
  • Isolation voltage: 2500V
  • Transmission rate: 300bps to 115.2Kbps
  • Protection level: RS-232 port ±15kV ESD protection, RS-485 port 600W lightning surge protection per line
  • Transmission distance: 0 to 5km (115.2Kbps to 300bps)
  • Usage environment: temperature -25°C to 70°C, relative humidity 5% to 95%, altitude ≤3000m
