ServoCity Linear Actuator Kit (1120 Series, 201mm Stroke, 8mm Lead)

ServoCitySKU: RB-Sct-2005
Manufacturer #: 3212-0001-0001

Price  :
Sale price ¥21,473

Tax included Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Google Pay JCB Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • ServoCity Linear Actuator Kit (1120 Series, 201mm Stroke, 8mm Lead)
  • Construct linear actuator with goBILDA components
  • Drive 22kg of thrust with 5.2:1 gear motor
  • Achieve no-load speed of 153mm/sec
  • Traverse 200mm in just 1.31 seconds

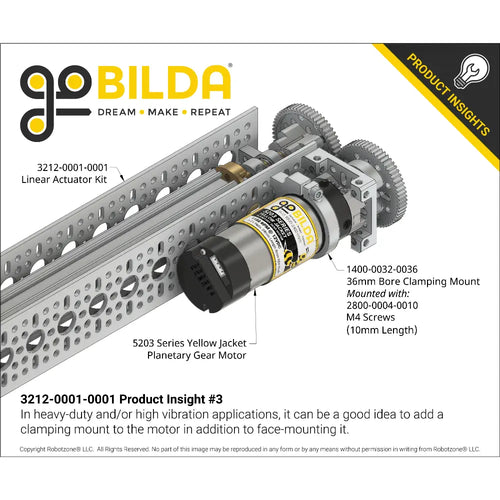

  • Utilize motor with encoder to prevent damage

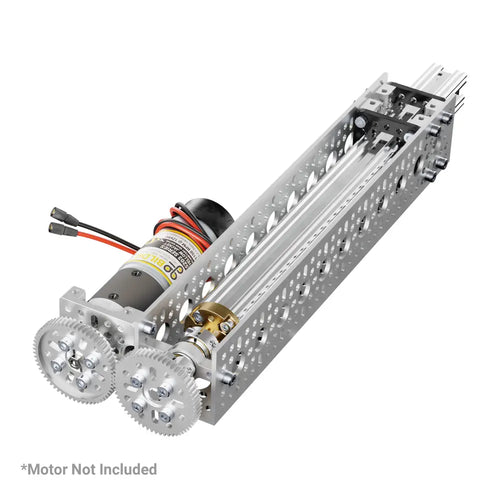

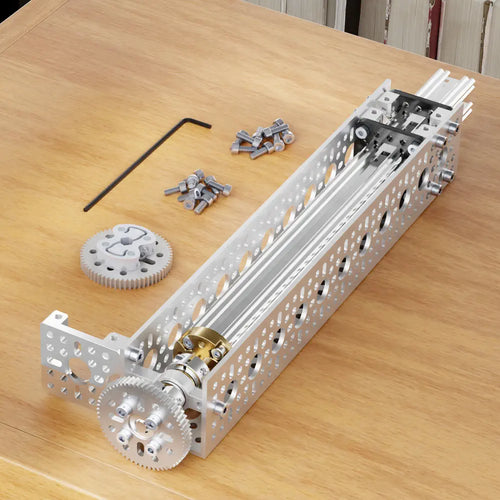

The ServoCity Linear Actuator Kit (1120 Series, 201mm Stroke, 8mm Lead) is a comprehensive assembly designed to construct a linear actuator using goBILDA® components. The framework is formed by the 1120 Series U-Channel, while the extension is facilitated by the 1109 Series goRAIL. The goRAIL is supported by acetal plates, which can be adjusted along the channel to modify the extension length and lateral support. A 60 tooth gear on the motor drives another 60 tooth gear attached to the lead screw, creating a compact 1:1 ratio. It is recommended to use the goBILDA® 5203 Series Yellow Jacket Planetary Gear Motor with a 5.2:1 ratio. This combination with the 2mm pitch lead screw generates over 22kg of thrust, achieving a no-load speed of 153mm/sec, and can traverse the full 200mm in just 1.31 seconds. Note: Running the actuator beyond its endpoints can cause damage; it is essential to use a motor with an encoder to program endpoints for proper operation.

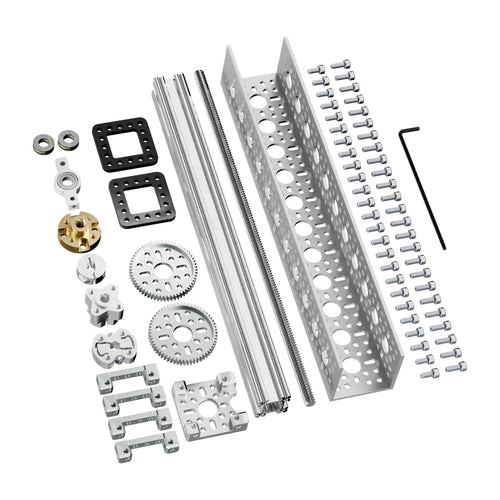

Linear Actuator Kit 1120 Series 201mm Stroke 8mm Lead Components

  • 1x 1109 Series goRAIL (288mm Length)
  • 1x 1120 Series U-Channel (11 Hole, 288mm Length)
  • 1x 1201 Series Quad Block Pattern Mount (43-5)
  • 2x 1205 Series Dual Block Mount
  • 1x 1309 Series Sonic Hub (8mm REX Bore)
  • 1x 1310 Series Hyper Hub (4 Start, 8mm Lead Screw Bore)
  • 1x 1606 Series 2-Side, 1-Post Pillow Block (8mm Bore)
  • 2x 1613 Series Thrust Ball Bearing (8mm ID x 16mm OD, 5mm Thickness)
  • 2x 2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 60 Tooth)
  • 25x 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 9mm Length)
  • 25x 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 11mm Length)
  • 1x 3504 Series Lead Screw Clamping Collar (8mm Lead, 4 Start, 21mm OD, 9mm Length)
  • 1x 3501 Series Lead Screw (8mm Lead, 4 Start, 300mm Length)
  • 1x 3505 Series Lead Screw Pattern Nut (8mm Lead, 4 Start, 32mm OD, 16mm Length)
  • 2x 3704 Series Plastic goRAIL Slide Plate (43-1)
  • 1x Wera Tools 3mm Ball End Hex-Plus L-Key

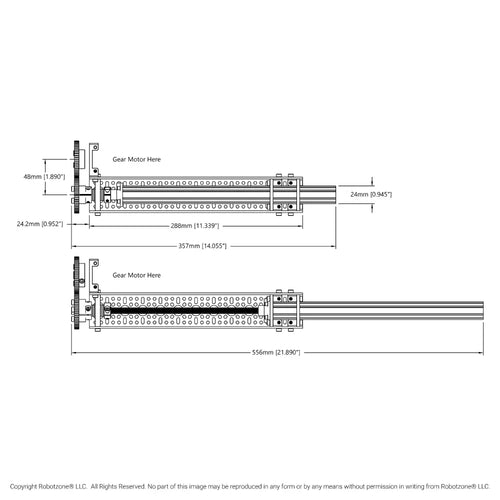

1120 Series Linear Actuator Kit - Dimensions cropped

  • Weight (assembled): 619g
