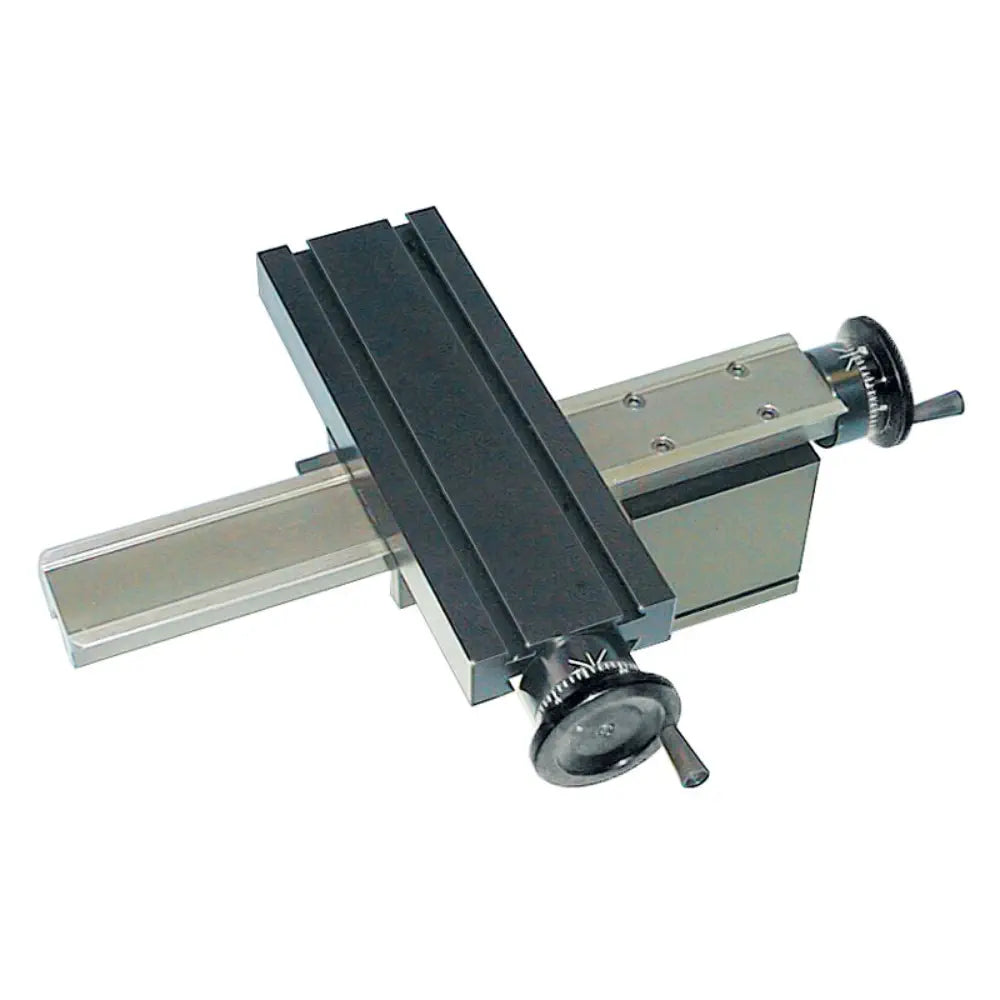

The Sherline 2-Axis Manual Machine Slide (Metric) is a precision-engineered tool designed for meticulous machining tasks. Constructed primarily from 6061-T6 aluminum, it features a durable black anodized finish, ensuring both strength and resistance to wear. The integration of steel parts with ground dovetails enhances the stability and precision of the slide, making it suitable for a variety of industrial applications.
This machine slide is equipped with a metric leadscrew, which is precision rolled from steel to ensure accuracy and reliability. The leadscrew backlash is adjustable, allowing for fine-tuning to achieve optimal performance. The dovetailed tables and saddles are fitted with adjustable gibs, which serve to eliminate any play, thereby maintaining the precision of the machining process.
The slide includes 2-inch industrial handwheels, which are graduated in 0.01 mm increments, providing precise control over movements. The design incorporates mounting provisions from both the bottom and the top, offering flexibility in installation. The slide is capable of supporting a weight capacity of approximately 10 lbs, making it suitable for a range of machining tasks.
Note: Do not use WD40 as a lubricant.
1x Sherline 2-Axis Manual Machine Slide (Metric)
1x 9/64″ Hex Key
1x Saddle Nut, Plain
1x Manual Saddle Locking Lever
1x 10-32 x 5/8″ Socket Head Cap Screw
2x 10-32 x 3/16″ Set Screw
2x 10-32 x 1/4″ Flat Point Set Screw
1x 10-32 x 1/2″ Socket Head Cap Screw
4x 10-32 x 7/8″ Socket Head Cap Screw
2x Gib Lock
1x Slide Screw Insert Nut
1x Saddle
1x Gib, Table
1x Gib, Saddle
1x Manual Leadscrew
1x Bed
1x Base
1x 2″ Industrial Y-axis Handwheel
2x 2″ Industrial X-axis Handwheel
2x Industrial Handwheel Collar
1x 8″ Crosslide Table
1x Preload Nut (RH)
1x Preload Nut (LH)
4x 3/8″ Flanged Bearing
1x Crosslide Manual Slide Screw
Table size: 70 x 203 mm (2.75 x 8")
Table height above mounting surface: 130 mm (5.13")
