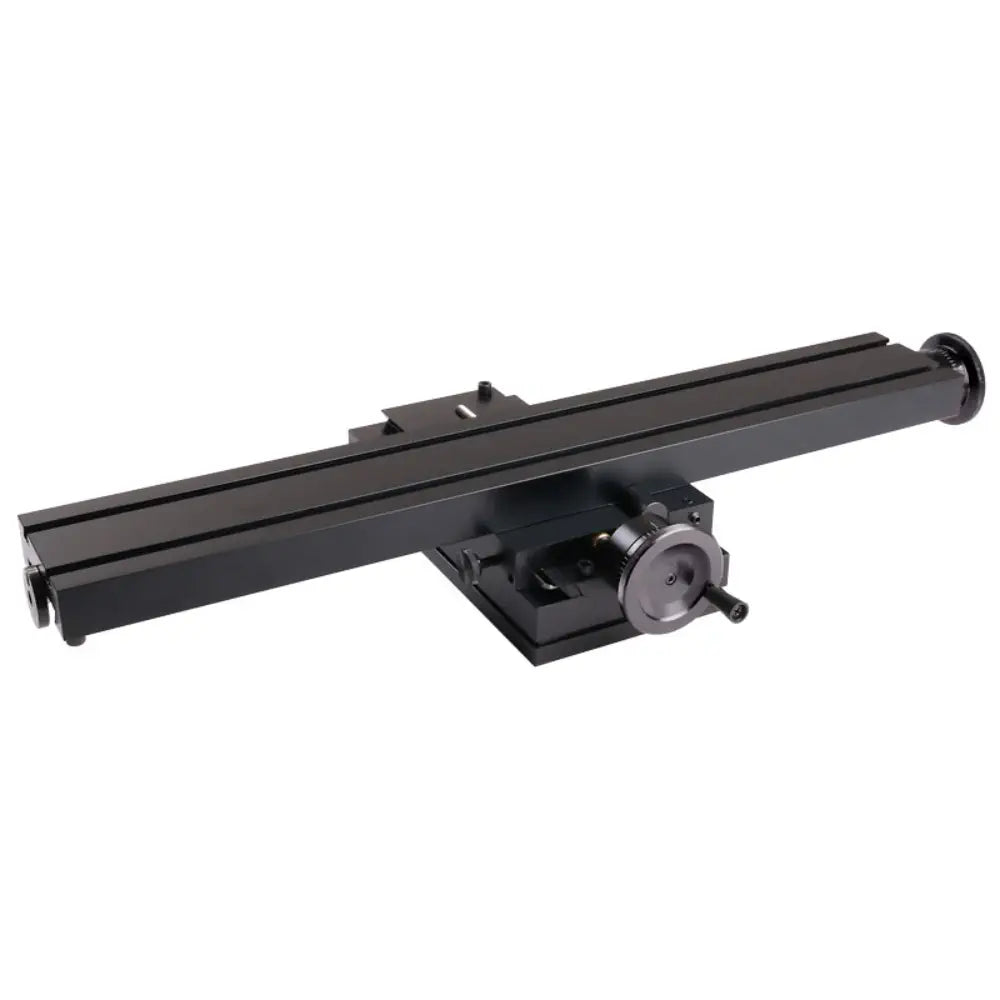

The Sherline 2-Axis X/Y Manual Machine Slide 18" (") is a precision-engineered component derived from the X/Y base of the Sherline miniature milling machine. This manual machine slide facilitates precise movement along two axes, the X-axis and the Y-axis, allowing for intricate control over the positioning of the workpiece. The Y-axis enables in-and-out movement, while the X-axis provides side-to-side travel. When mounted vertically, the X-axis remains the same, but the vertical movement is referred to as the Z-axis.
Constructed from high-quality 6061-T6 aluminum, the slide is finished with a durable black anodized coating, ensuring both strength and resistance to wear. The table length for this model is 18 inches, and it is available with either an inch or metric leadscrew, catering to different measurement preferences. The leadscrews are precision rolled from steel, and the design incorporates adjustable backlash to maintain accuracy. The dovetailed tables and saddles feature adjustable gibs, which eliminate play and enhance stability during operation.
The handwheels are meticulously graduated, offering .001-inch increments for inch slides and .01 mm increments for metric slides, allowing for precise adjustments. The slide is capable of supporting a weight capacity of approximately 10 pounds, depending on the distribution of the load. It is designed for a duty cycle of 2080 hours under heavy use, highlighting its durability and reliability in demanding environments.
Mounting provisions are versatile, with options to secure the slide from the bottom using four 1/4-20 holes or from the top with four angle clamps. The handwheel is crafted from laser-engraved aluminum and incorporates two pre-loaded ball bearings for smooth operation. Additionally, the slide includes two T-slots for hold-down provisions, ensuring secure attachment of workpieces during machining operations.
1x Sherline 2-Axis X/Y Manual Machine Slide 18"
4x 35580 Hold-down clamp
1x 40280 Thrust collar (18″ table only)
2x 40510 10-32 x 3/8″ Socket Head Cap Screw
5x 40520 10-32 x 3/16″ Cup Point Set Screw
1x 40530 5-40 X 3/8″ Socket Head Cap Screw (18″ table only)
